Carbide Contour Tips
In Stock Replacement Tips for Contour Measurement
EMI Gage manufactures and stocks replacement tungsten carbide probe tips for contour measurement gages. Our chisel and conical contour tips are NEW, not remanufactured. Our quality meets or exceeds original equipment manufacturers, and typically for a significantly lower cost.
Most common tips are in stock for immediate, off-the shelf delivery to quickly replace chipped or broken probe tips for Taylor Hobson, Mahr, Zeiss/TSK, and Mitutoyo gages.* Chisel (knife edge) angle from 12° to 30°. Cone angles from 20° to 30°. Custom radii on conical tips are also available.
The list below shows a selection of our carbide contour tips that are in stock and ready to ship. We can manufacture virtually any tip. If you don’t see what you need, use the Custom Tips form below to let us know your requirements. You can also email drawings/sketches of your design and/or the features you need to measure to info@emigage.com.
-

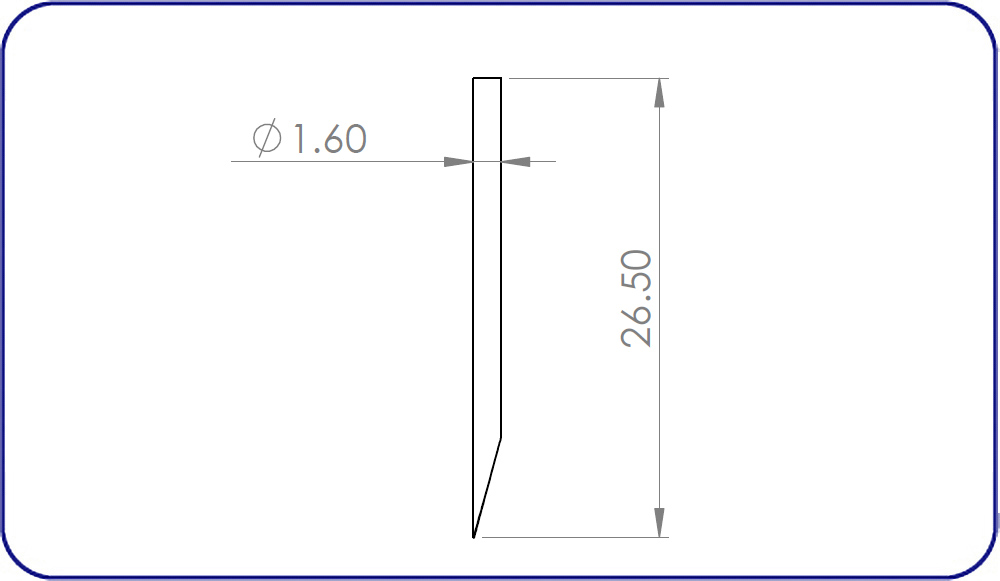

EMI Gage Replacement Contour Carbide Tip for Taylor Hobson 112-1684EMI Gage replacement carbide tip, compatible with Taylor Hobson #112-1684 Tip: tungsten carbide, chisel / knife edge, 15° with 20µm radius tip EMI Gage Part #: 1DCH-1684 -

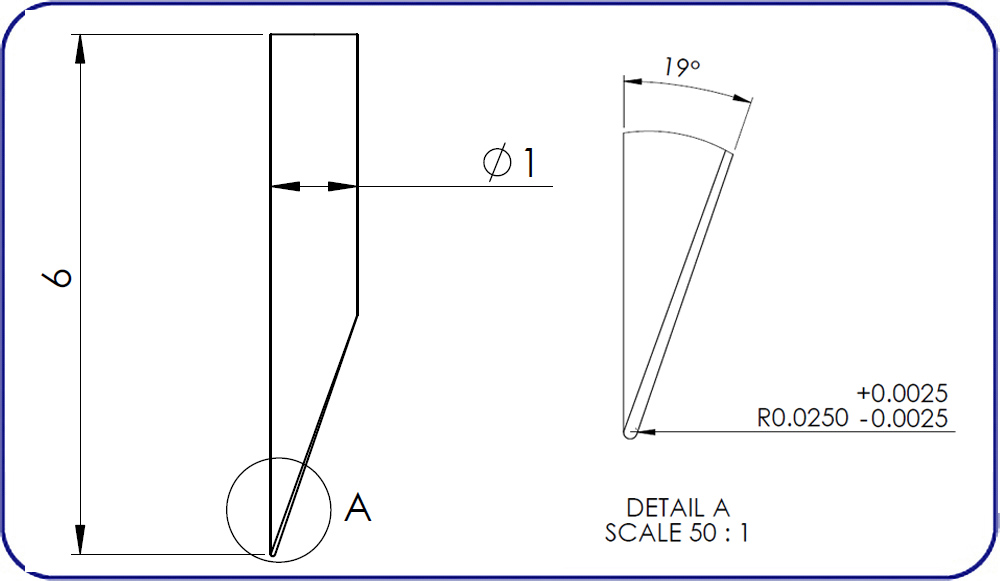

EMI Gage Replacement Contour Carbide Tip for Mahr 6851527EMI Gage replacement contour stylus for Mahr CONTOUROSCOPE, CONTOUROGRAPH and MARSURF CD-120 Compatible with Mahr Stylus 6851527 Tip: tungsten carbide, 19 degree conical / cone with 25µm radius EMI Gage Part#: 1PCH-1523 -

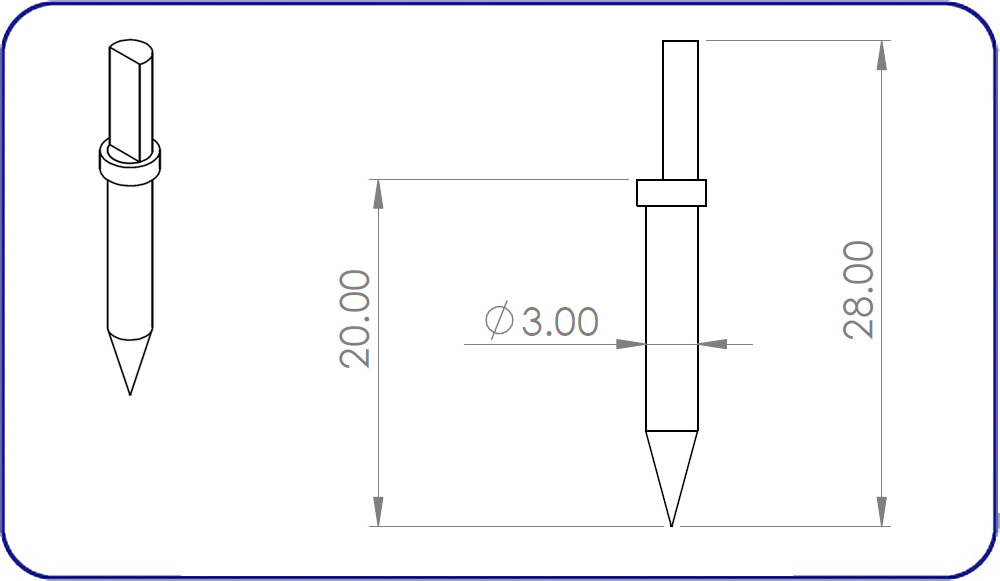

EMI Gage Replacement Contour Carbide Tip for Mitutoyo 12AAA568EMI Gage replacement contour stylus tip for CV-2100 Series gages. Compatible with Mitutoyo stylus 12AAA568 (SPH76) Tip: tungsten carbide, 30 degree conical / cone with 25µm radius EMI Gage Part#: 1MCC-A568 -

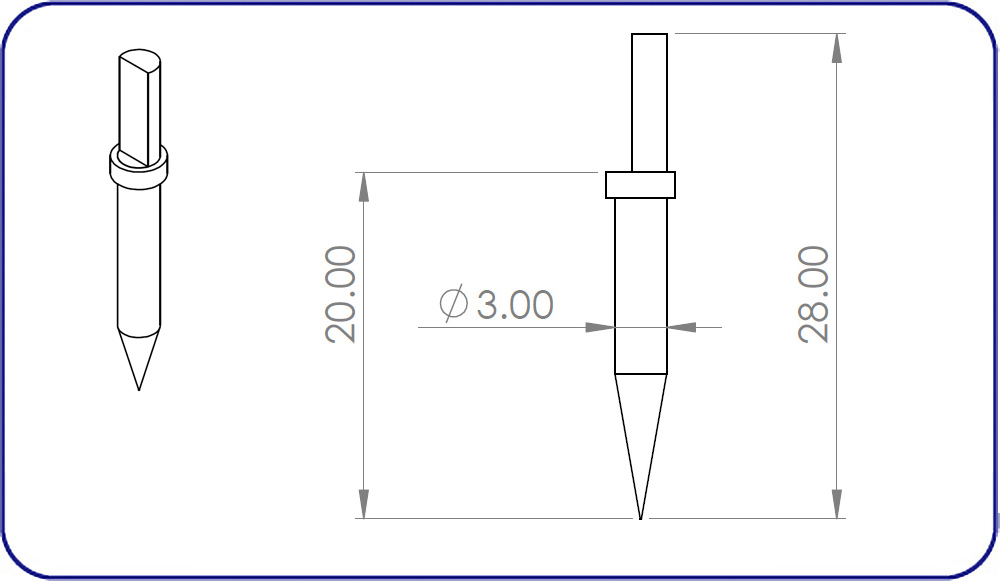

EMI Gage Replacement Contour Carbide Tip for Mitutoyo 12AAE867EMI Gage replacement contour stylus tip for CV-2100 Series gages. Compatible with Mitutoyo stylus 12AAA567 (SPH77) Tip: tungsten carbide, 20 degree conical / cone with 25µm radius EMI Gage Part#: 1MCC-E867 -

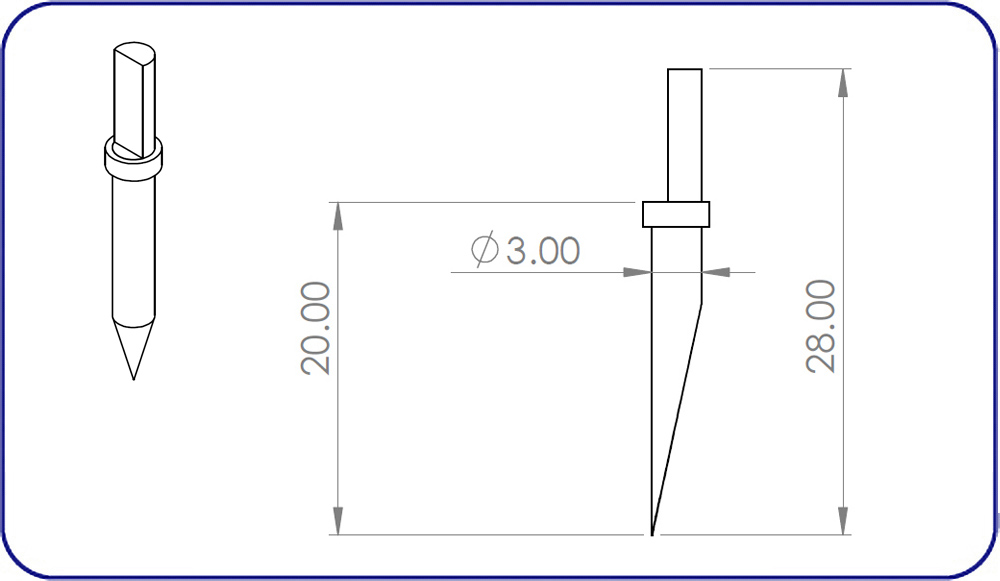

EMI Gage Replacement Contour Carbide Tip for Mitutoyo 354884EMI Gage replacement contour stylus tip for CV-3200 and CV-4500 Series gages. Compatible with Mitutoyo stylus 354884 (SP71) Tip: tungsten carbide, 12 degree chisel / knife edge with 25µm radius EMI Gage Part#: 1MCH-4884 -

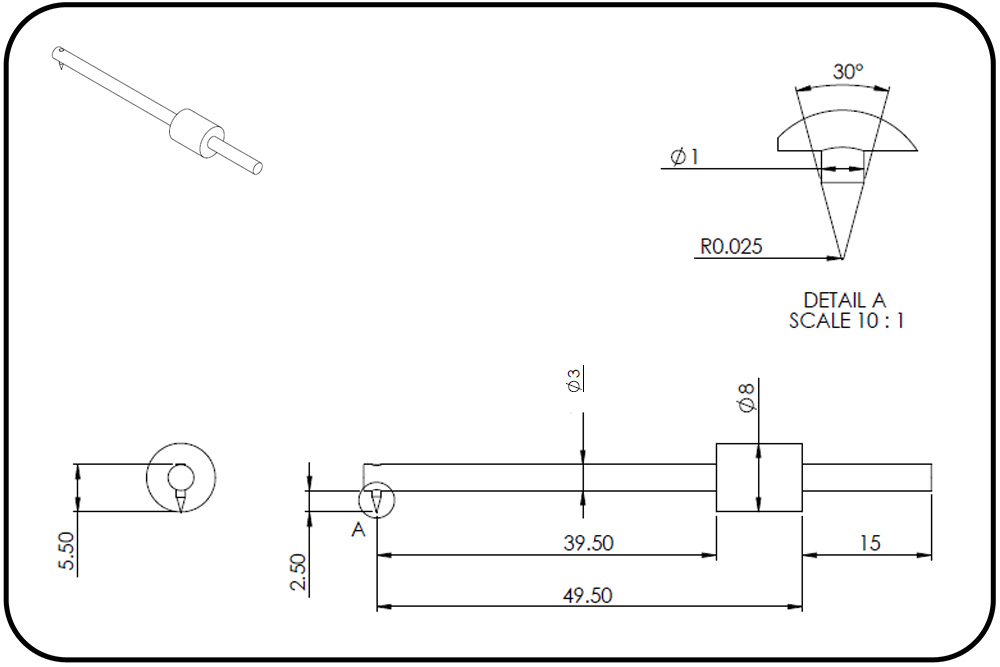

EMI Gage Replacement Contour Carbide Tip for Mitutoyo 12AAE875EMI Gage replacement contour stylus tip for CV-2100 Series gages Compatible with Mitutoyo stylus 12AAE875 (Small Hole Contour Stylus) Tip: tungsten carbide, 30 degree conical / cone with 25µm radius EMI Gage Part#: 1LC0-503F-875
Custom Tips
Need a custom contour tip for your application? We can manufacture chisel or conical carbide tips to your specifications, in a matter of weeks, for a fraction of the typical cost from OEM suppliers.
Use the form below to let us know the measurement instrument and model you are using. Then, email us a sketch or drawing of the tip or the feature(s) that you need to measure. We will get back in touch with you to discuss the specifics to design your custom tips.
